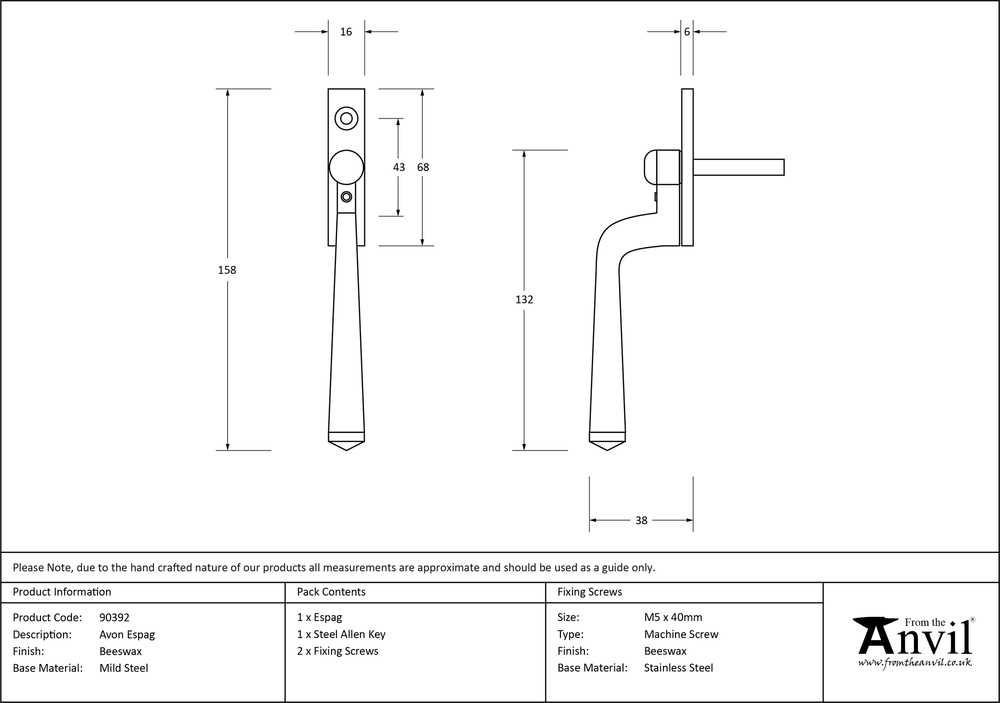

Overall Length: 158mm
Handle Length 132mm
Fixing Plate Size: 68mm x 16mm x 6mm
Centres: 43mm

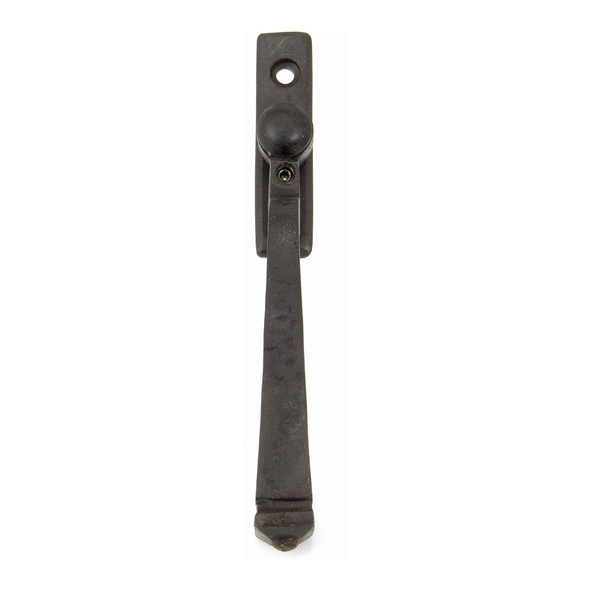

The simple, four-sided design of our Avon collection is created by hand with a series of hammer blows, and is well-suited to contemporary and traditional settings alike.
Due to their slim fixing plates, these espagnolettes can be fitted on any type of window including uPVC and timber. Designed to match the products in our Avon range.
For ease of use, the handle is cranked forwards, ensuring it protrudes a moderate distance from the window.
The reversible design of this product makes it suitable for both left and right-handed windows.
They have a 7mm² x 40mm spindle and can be locked by way of a grub screw.
Suitable for use with an espagnolette gearbox and window lock.
Supplied with matching SS M5 screws.
Beeswax is our most authentic finish for steel. After forging, these products are dipped into hot beeswax which allows them to retain their original colours ranging from blue to deep ochre. All our Beeswax ironmongery offers a subtle matt richness and is a more natural, and far softer, alternative to a black powder coated finish. These products offer excellent internal protection when properly maintained.
